Hospital Use Portable Optional mode, color, bright, intension Projection Vein Finder Vein Illumination Viewer Near

Model Number: VS-400 DIY Supplies: Electrical

• Brand Name:  JOSH or similar
• Item Type:   Braces & Supports
• Model Number:  GY-VS-400 CJ
• Material:  ABS
• Effect:  find vein
• Light type:   Near-infrared light
• Infrared wavelength:   850 nm
• Image resolution:   720*480
• Visible Vein Size:    >=1mm
• Accuracy:   0.25mm
• Depth of Visible Vein:     <=12mm
• Best projection distance:     200 +- 20mm
• Image frame rate:  20FPS
• LED lifetime:    20000 hours
• Operating Mode:    Handheld or Suspension

Function:

It provides a real time accurate image of the patient's blood pattern of any part of body.

Principle:
SSCH vein viewer projects near-infrared light which is absorbed by blood and reflected by surrounding tissue,and this information is captured abd processed,finally ,projected in real time directly onto the surface of the skin,

Products Show
• No radiation: Near infrared light at 850nm
• Skin penetrability: Depth ≤12mm
• Vein position accurate: Accuracy at 0.25mm
• No artery image: Artery are deeper, less sensitive infrared .
• No depth information: Two-dimension graphic

Applicable Patient
• Fat patients
• Edema patients
• Dark skin • Infants
• Children
• Old patient
• Plastic Surgery
• Vascular Surgery
......

Application Type
• Target vein quickfnding: Helpful for finding the target veins efficiently and easily
• Guidance for vepuncture: Provide a more clear vein view, Indicate the vein position, trend, branch, crossing
• Vein evaluation: Evaluate the vein filling condition
• Aesthetic medical injection: Helpful for medical staffs to avoid the veins
• Feeder vein treating: Helpful for finding more feeder veins and treat throughly, make the feeder treating visable

More Information

Vein puncture
Helpful throughout the whole puncture procedure.

Before puncture:
Helpful for finding the invisible veins and the special veins efficiently and easily, evaluate the vein condition.

During venipuncture:
Shows the vein position, trend, branch, crossing

After venipuncture:
Check the hematoma ; Check the injection liquid flow.
• Increase first stick success by up to 100%
• Decrease medically unnecessary PICC lines by greater than 30%
• Increase patient satisfaction by 100%

Aesthetic Facial Injection
• Accidentally hitting a vein during injection of fillers and other cosmetic facial treatments can cause intense pain and facial bruising (damage).
• Veins in the area indicated in the right image is visable by VeinSight™ vein illumination, the visibility of the veins located on the other area depends on the facial veins and muscle condition of patient.

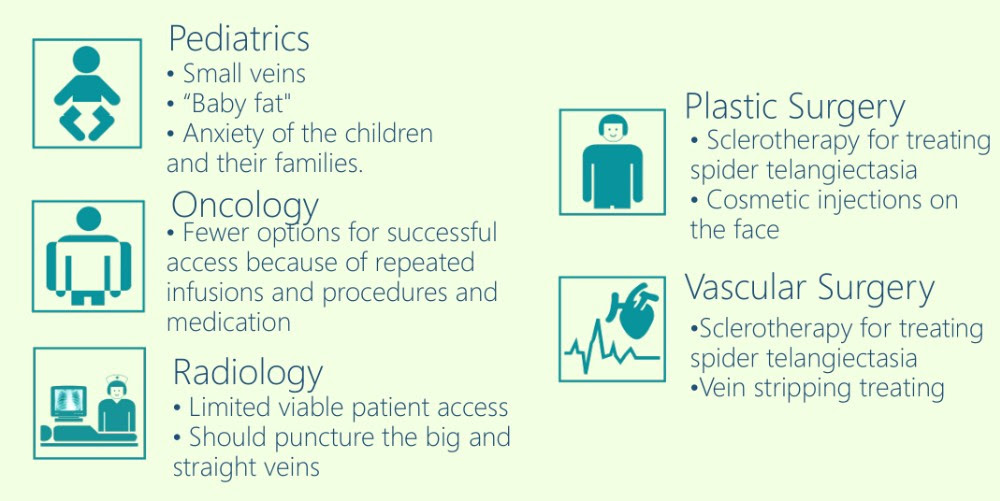

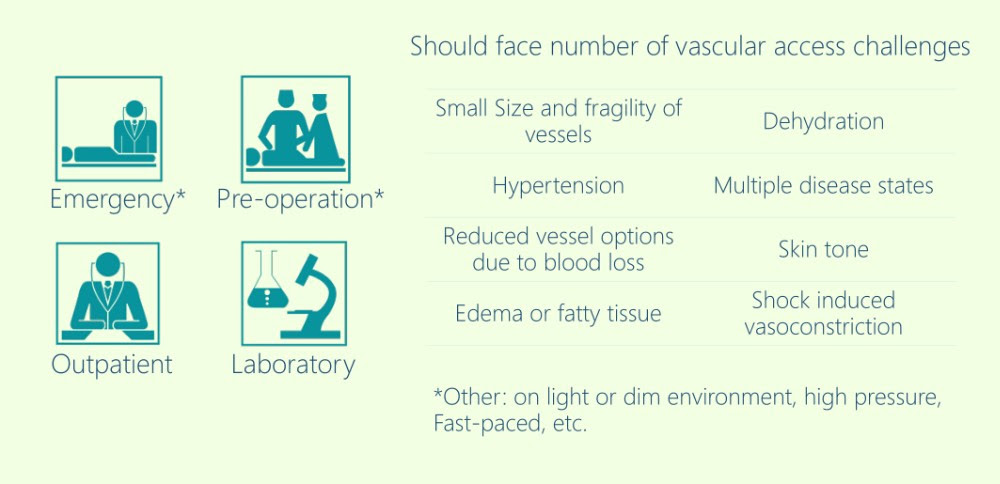

Applicable Department
