Description
General indicators
Frequency range: 400 ~ 480MHz
Number of channels: 16.
Dimensions: 128*55*28mm
Weight: 153g
Channel spacing: 12.5KHz/25KHz.
Working voltage: Rated DC3.7V.
Battery capacity: 2500mAh (lithium battery).
Environmental indicators
Working temperature: -20°C~+60°C
Storage temperature: -20°C ~ +70°C
Receiver
Receiver sensitivity: ≤0.25μV
Adjacent channel selectivity: ≥60dB
Blocking: ≥80dB
Rated audio distortion: ≤5%
Receive Audio Power:0.5W
Signal to Noise Ratio:25k≥45dB
12.5k≥40dB
Transmit power: 1.8w ±0.2w
Transmitter
Modulation method: 16kφF3E/8kφF3E
Modulation limit: ±5kHz/±2.5kHz
Audio distortion: ≤5%
Residual FM: -45dB
Adjacent channel power:-67dB
Radiated Emission:-36dBm
Shock and vibration:
According GJB 150-2009 and MIL-STD-810 C/D/E/F/G standard.
Per set including :
1*pc radio within Antenna
1*pc Charger or 1*pc USB
1*pc Belt clip
Option:

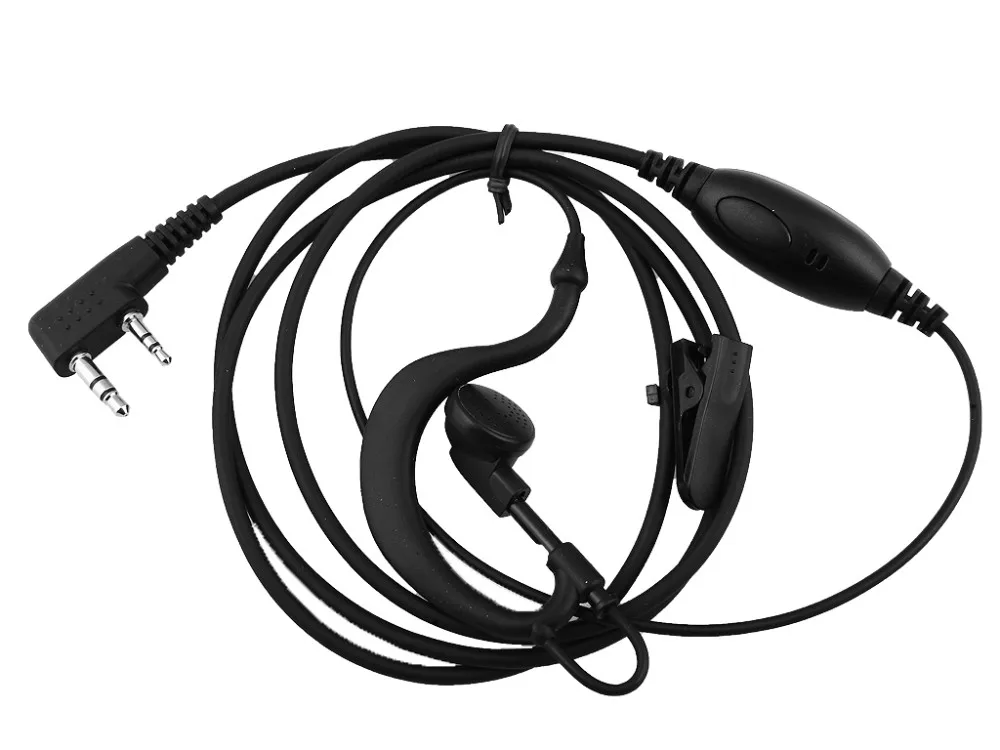

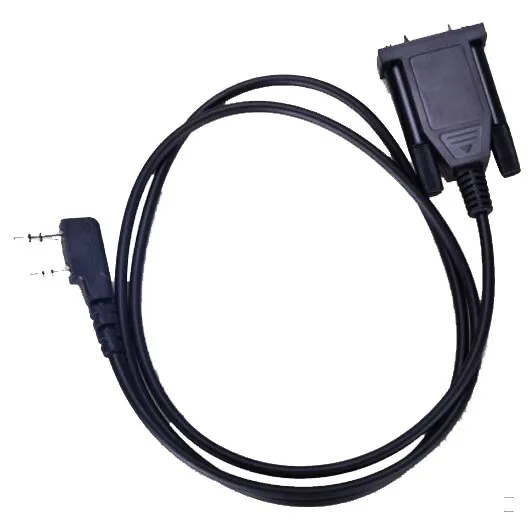

Programming Cable Earphone
